SMV8D Sliding Panel Saw Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.

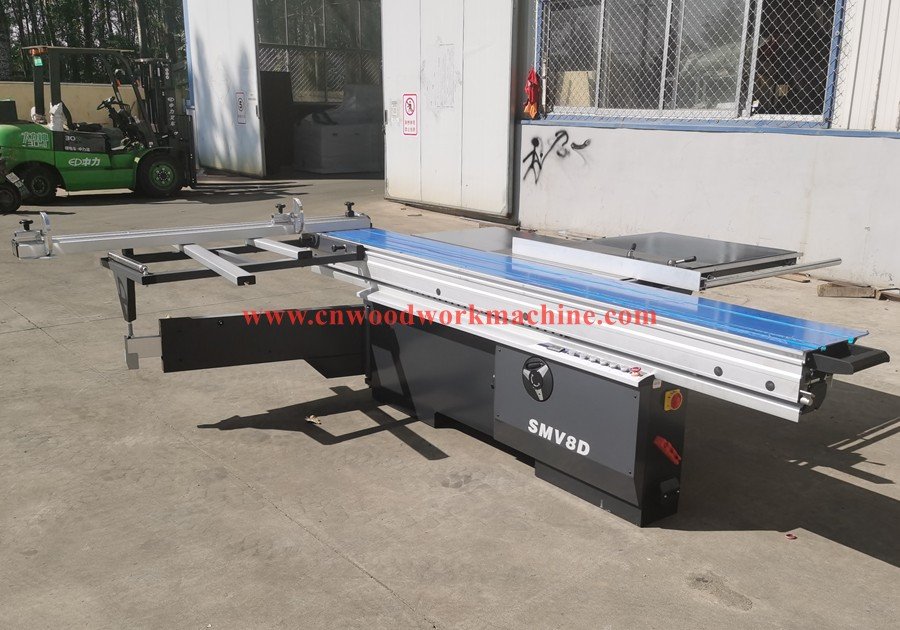

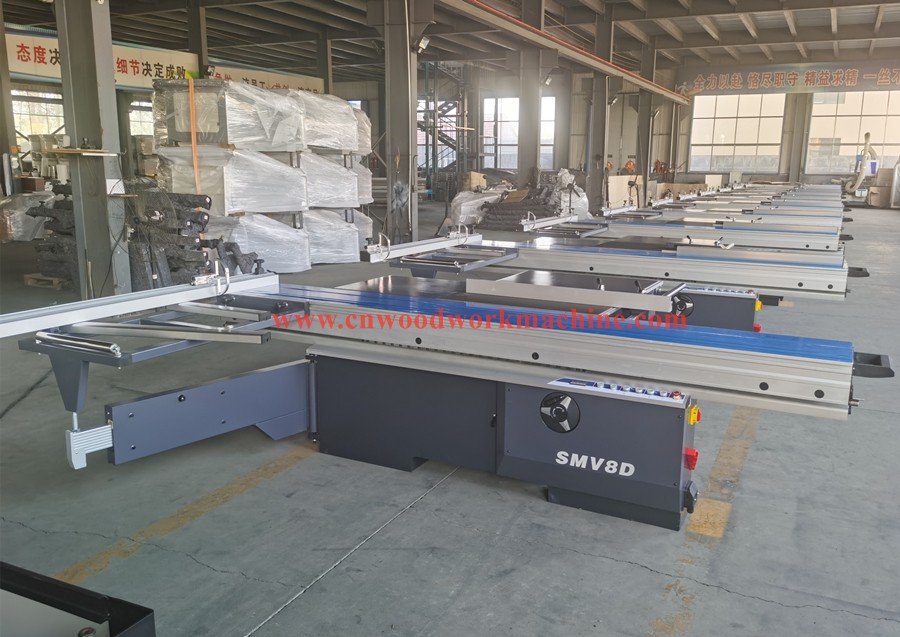

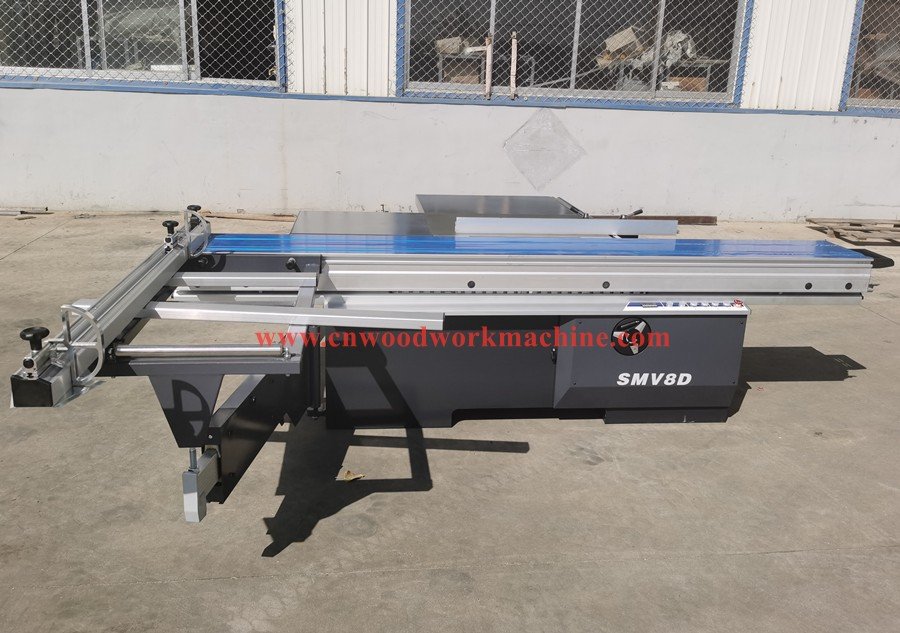

SMV8D Sliding Panel Saw

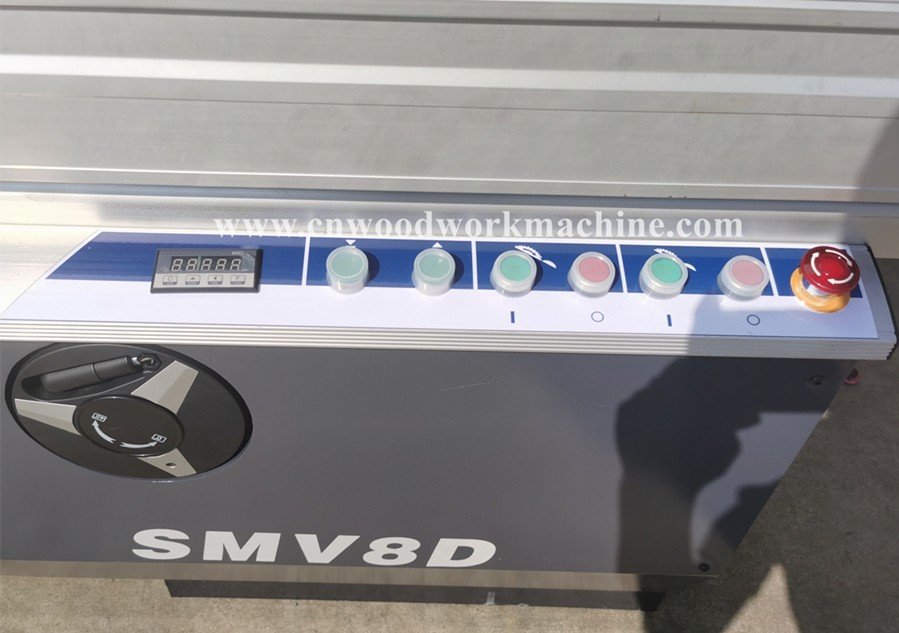

The saw blade lifting is electrical controlled with titling digital display to make the operation more precision simple
Type | SMV8D |
Dimension of sliding table | 3200x380 mm |
Gross cut capacity | 3200 mm |
Width of cut between saw blade and rip fence | 1250 mm |
Tilting saw group | 0-45° |
Diameter of main saw blade | 300 mm |
Max cutting height (90°) | 80 mm |
Speed of main saw spindle | 4000/6000 r.p.m |
Main saw motor power | 5.5 kw |
Main spindle diameter | 30 mm |
Diameter of scoring saw blade | 120 mm |
Speed of scoring saw spindle | 8000 r.p.m |
Scoring saw motor power | 1.1 kw |
Scoring saw spindle diameter | 20 mm |
Weight | 750 KGS |
Overall dimension | 3250x3150x900 mm |
