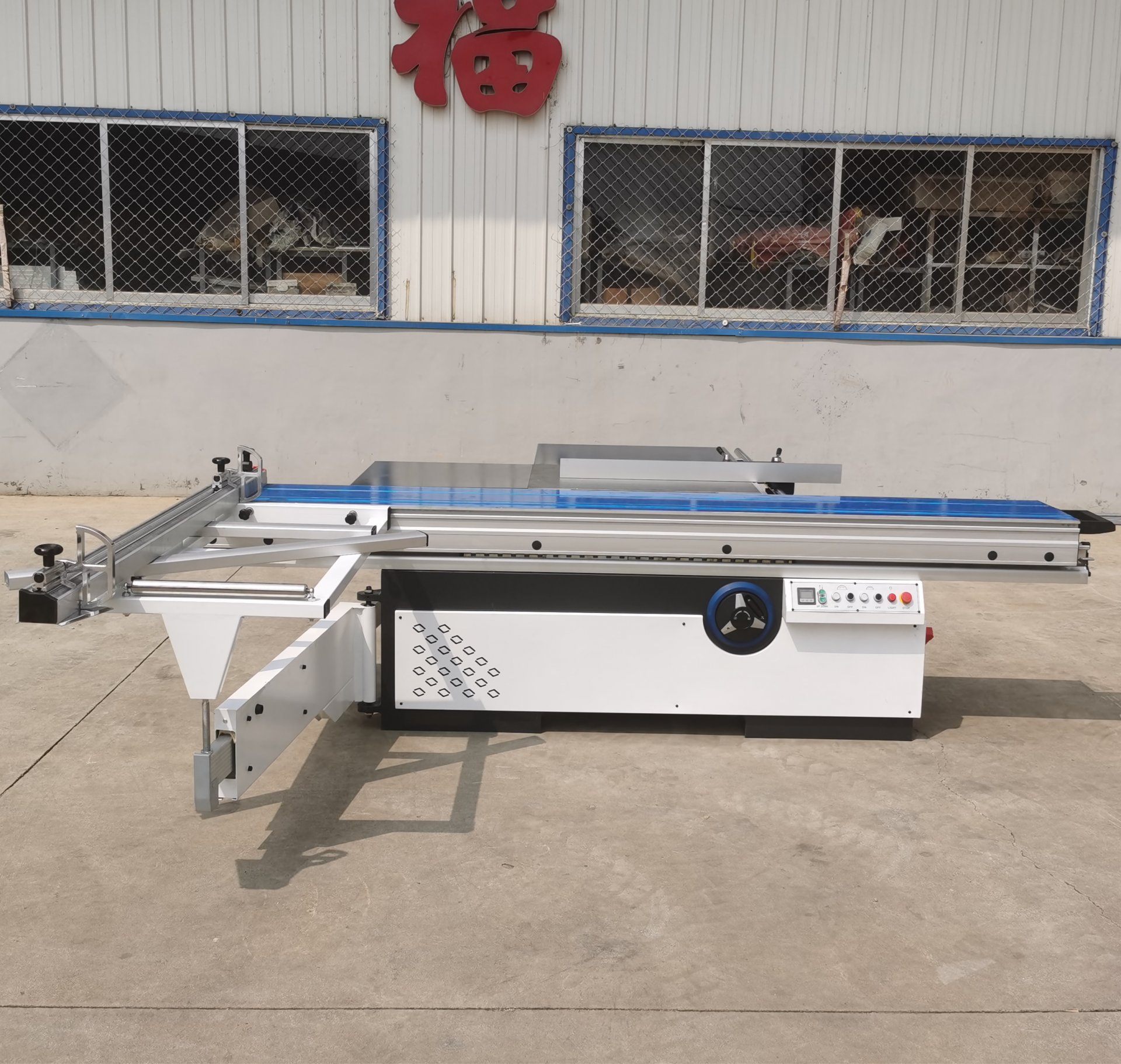

Panel saw Machine MJ-6132

Precision panel saw has high cutting accuracy and stable body.

Enquiry

Product Details

Precision panel saw has high cutting accuracy and stable body.

Technical Data:

Type	MJ6128
Dimension of sliding table	2800x375 mm
Gross cut capacity	2800 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	300 mm
Max cutting height (90°)	80 mm
Speed of main saw spindle	4000/6000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	20 mm
Weight	730 KGS
Overall dimension	2850x3150x900 mm
