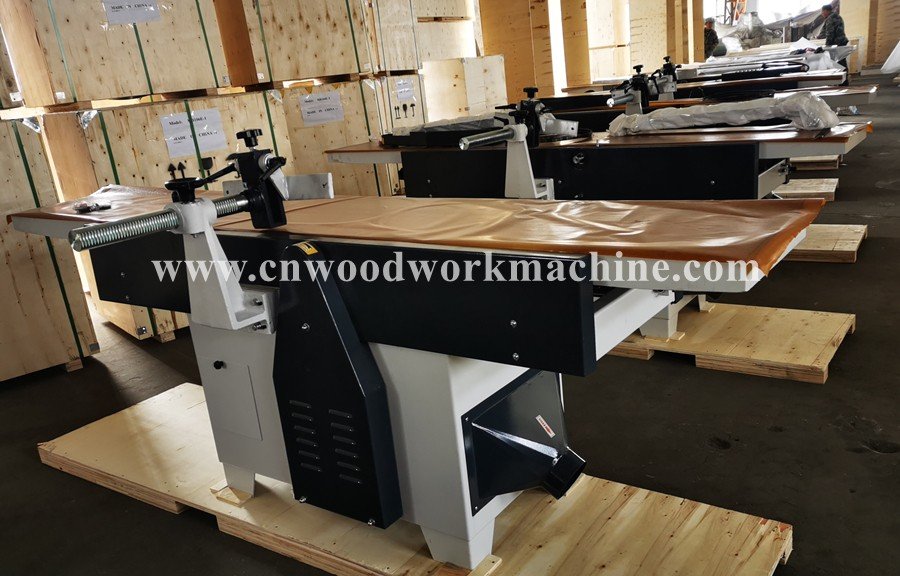

Woodworking machinery planer 300mm wood jointer machine helical spiral cutter optional (1)

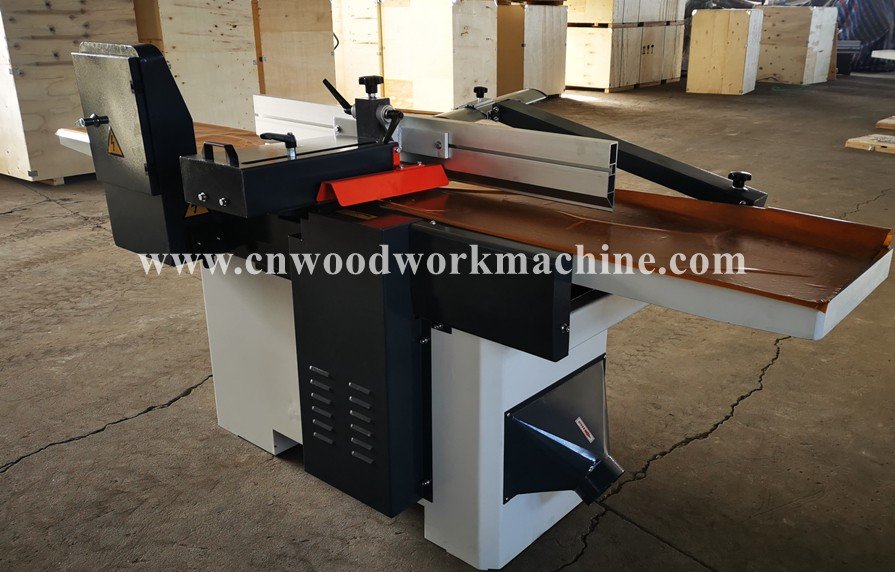

Woodworking machinery planer 300mm wood jointer machine helical spiral cutter optional (2)

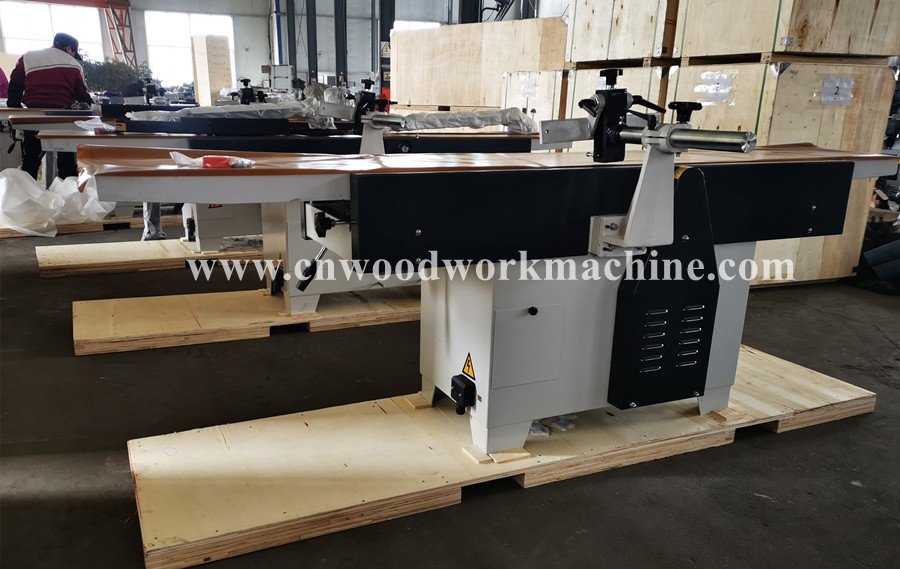

Woodworking machinery planer 300mm wood jointer machine helical spiral cutter optional (3)

Woodworking machinery planer 300mm wood jointer machine helical spiral cutter optional

Woodworking machinery planer 300mm wood jointer machine helical spiral cutter optional

Enquiry

Product Details

		MB503F	MB504F	MB505F	MB506F
Max. planing width	mm	300	400	500	630
Max. planing depth	mm	4	5	5	5
Spindle speed	r/min	5600	5000	5000	5000
Number of blades		3	4	4	4
Cutting diameter	mm	Ø87	Ø102	Ø102	Ø102
Total length of worktable	mm	1800	2500	2500	2500
Motor power	kW	2.2	3.0	4.0	5.5
Motor speed	r/min	2840	2880	2890	2900
Overall dimensions	mm	1800×740×1010	2500×810×1050	2500×910×1050	2500×1040×1050
Net.weight	kg	300	450	550	640
