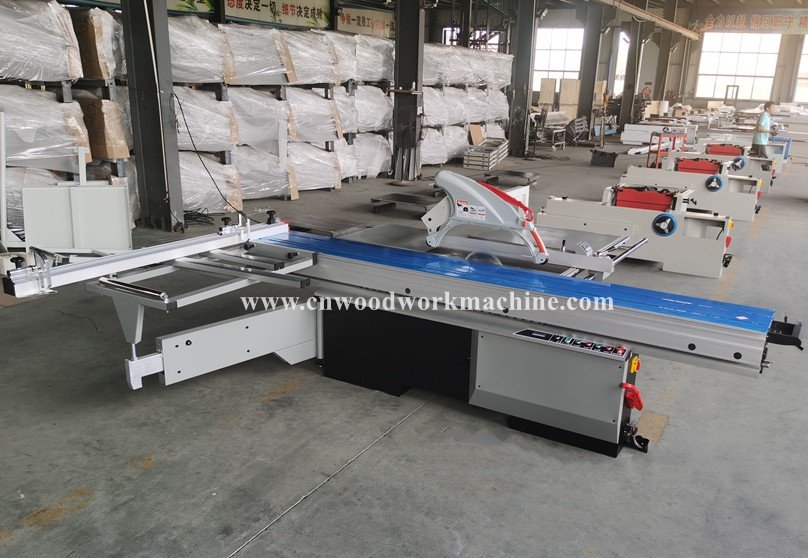

SMV8D sliding table saw machine for wood cutting

This machine is a reliable heavy duty European saw without the heavy duty price tag designed for the most sophisticated end users in mind.

Enquiry

Product Details

uropean precision panel saw performance for any size operation.

This machine is a reliable heavy duty European saw without the heavy duty price tag designed for the most sophisticated end users in mind.

Specification:

Main motor: 7.5 HP, 220V, 3-phase

Scoring motor: 1 HP

Digital Main blade tilt: 0–45 degrees

Depth of cut at 90 degrees: 4"

Depth of cut at 45 degrees: 3-3/4"

Main blade speed: 3000, 4000, 5000 RPM

Main blade arbor: 30mm

Scoring blade size: 120mm"

Scoring blade arbor: 22mm

Scoring blade speed: 8000 RPM

Scoring blade tilt: 0–45 degrees

Sliding table size: 16 1/2" x 126"

Maximum rip capacity: 52"

Maximum sheet capacity: 132" x 132"

Cross cutting length: 132"

Overall dimensions: 132"L x 141"D x 60" H
