Product Details

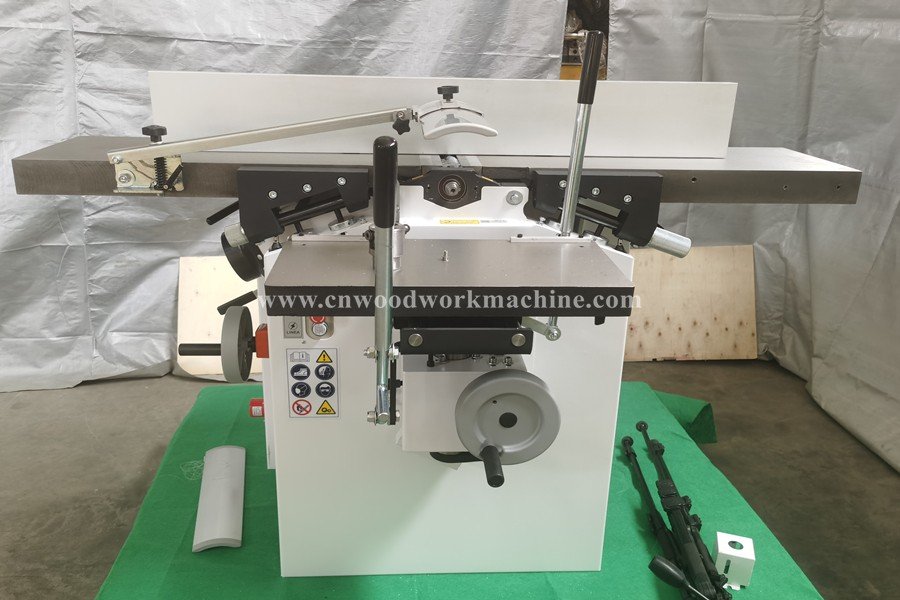

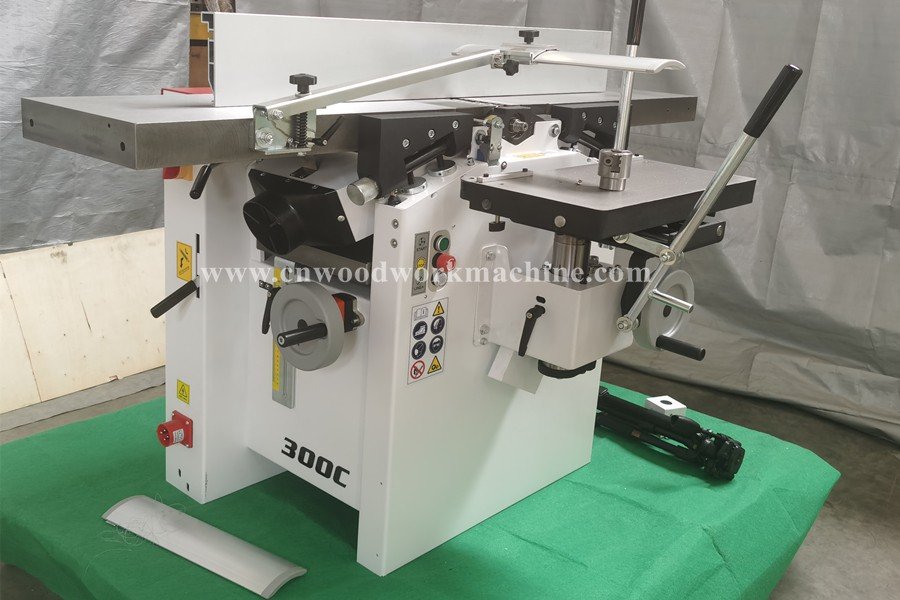

The 300C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.

Several further options are also available, each machine can therefore be tailored to the users specific needs.



Planer

Unit

300C

Working tables

mm

300x1500

Cutterblock diameter

mm

70

Cutterblock rotation speed

r.p.m

5700

N. of knives

3

knives dimensions

mm

300x20x3

Max table adjustement

mm

4



Thicknesser

Unit

300C

Working table

mm

300x660

Feed speed

m/1'

7

Max. working height

mm

220

Min. working height

mm

4

Cutterblock rotation speed

r.p.m.

5700

Max. cutting depth

mm

4



Mortiser

Unit

300C

Working table

mm

250x500

Longitudinal stroke

mm

205

Trasversal stroke

mm

95

Vertical stroke

mm

90

Churck

mm

16

Churck rotation speed

r.p.m.

5700



Standard accessories

Unit

300C

Service wrenches


*

Mortiser chuck


*

Guards on mortiseur chuck


*

3 pcs. planing knives


*

Planer guide



Bridge sefety hood on planer


*

3-phase motor power

HP - KW

3,0 - 2,2

Weight

kg

290



Optiona accessories

Unit

300C

Single-phase motor

HP - KW

3,0 - 2,2

Increasing 3-phase motor

HP - KW

4,0 - 3,0

Wescott(Diameter)

mm

16
