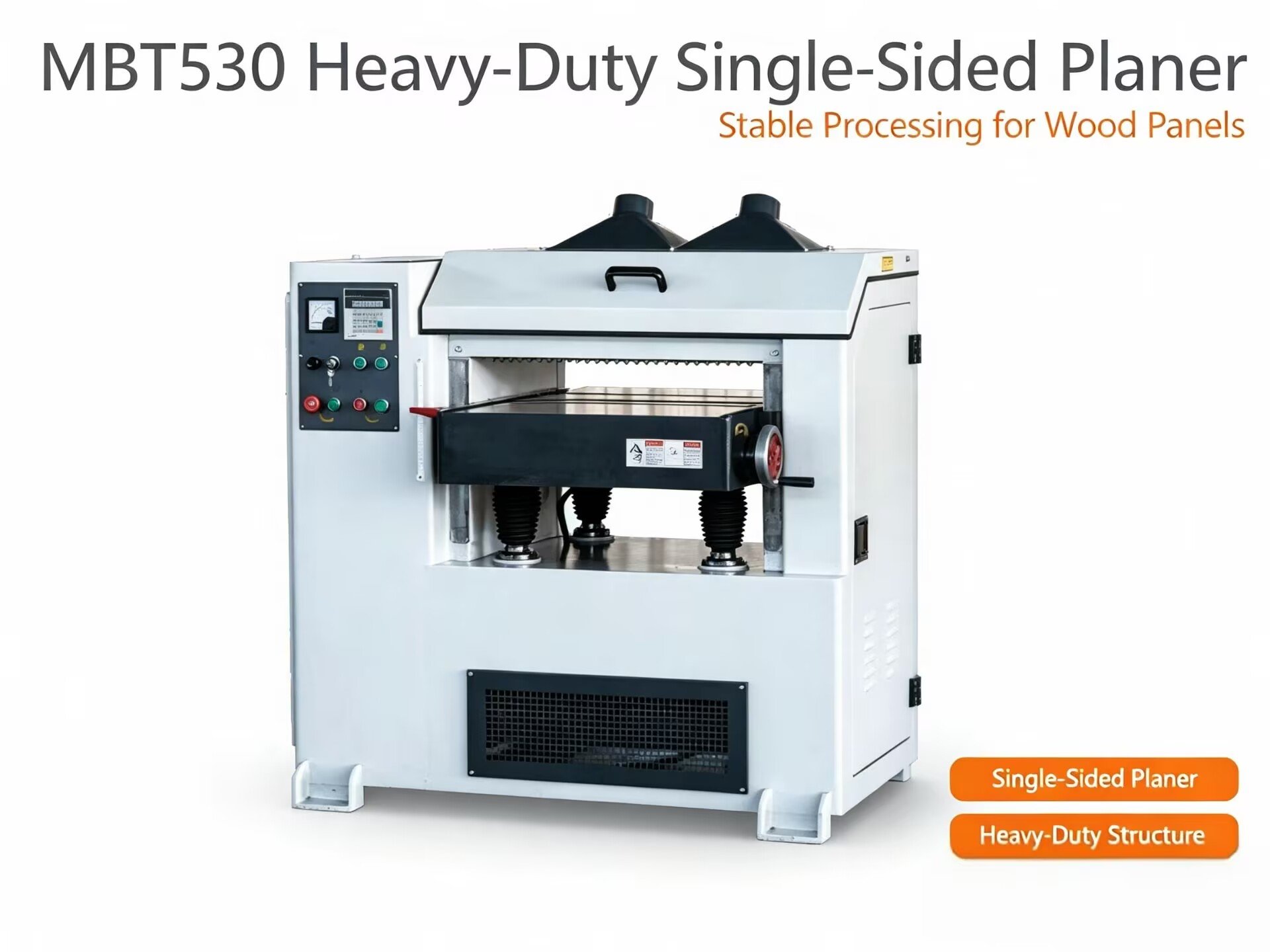

Heavy Duty Wood Thicknesser Spiral Cutterhead Automatic Feed Single Side Planer for Solid Wood Furniture

1. Heavy-duty single surface planer

2. Spiral cutter shaft, low noise & smooth finishing

3. Digital thickness display, easy adjustment

4. Stable feeding system, uniform planing

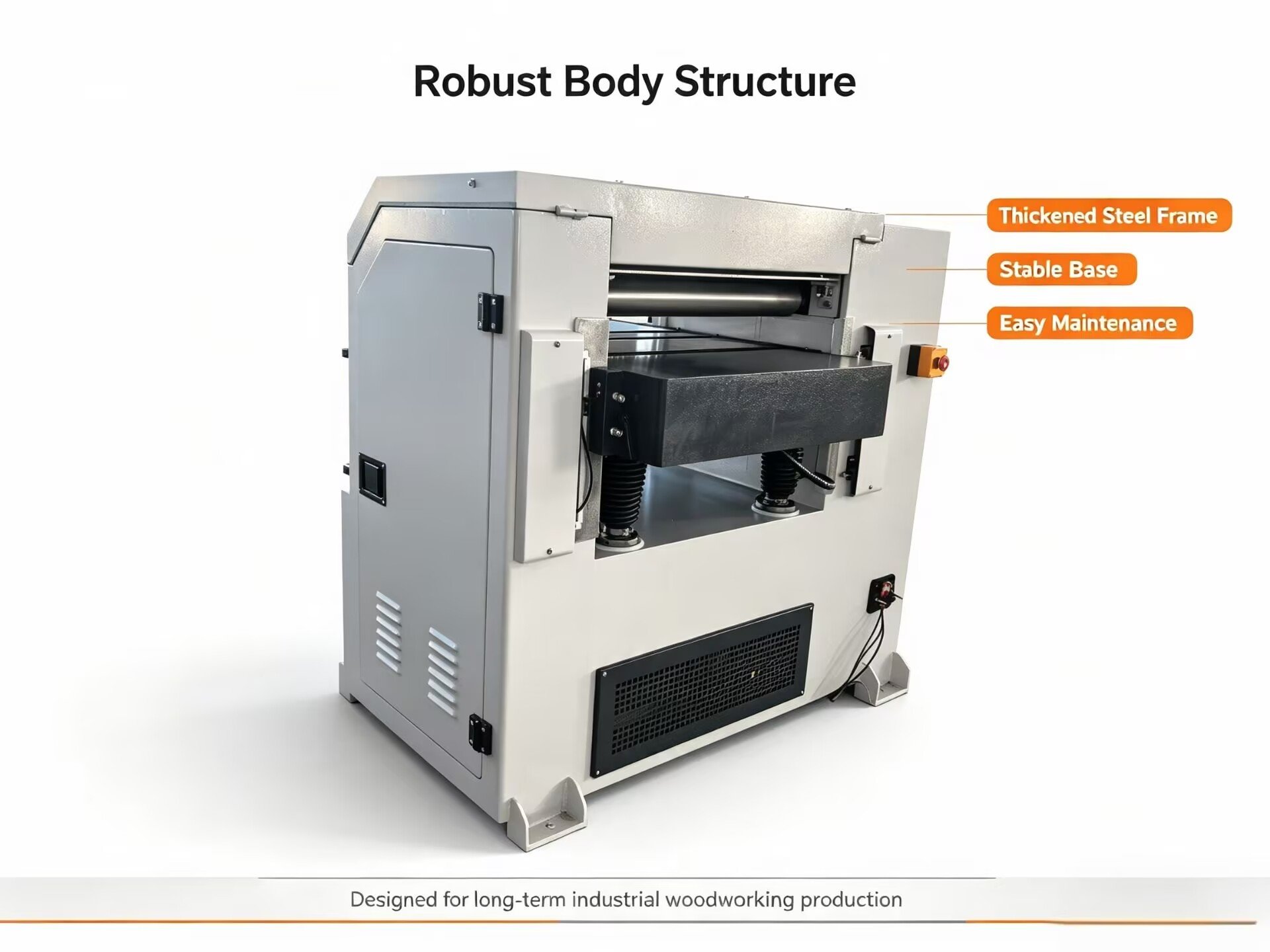

5. Cast iron body, durable & long service life

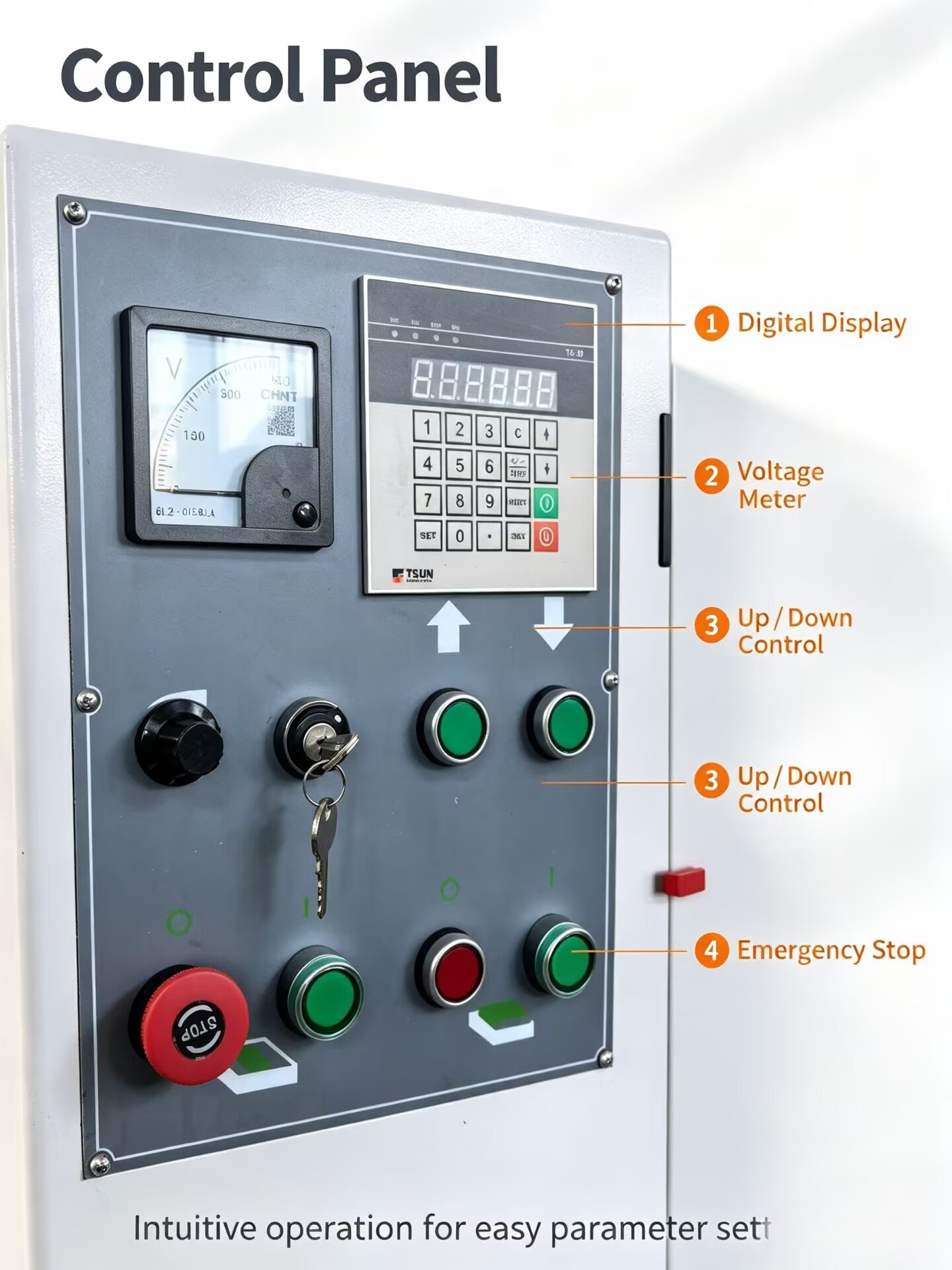

6. Emergency stop button for safety protection

7. Variable feed speed

Enquiry

Product Details

Item	MBT530	MBT630	MBT830
Max Planing Width	500 mm	630 mm	830 mm
Max Planing Thickness	255 mm	255 mm	255 mm
Max Thickness Variation of Raw Board	5 mm	5 mm	5 mm
Max Planing Depth	8 mm	8 mm	8 mm
Min Planing Length	280 mm	280 mm	280 mm
Feed Rate (Adjustable)	3–18 m/min	3–18 m/min	3–18 m/min
Spindle Speed	5000 r/min	5000 r/min	5000 r/min
Spindle Motor Power	7.5kW (10.20HP)	11kW (14.97HP)	15kW (20.41HP)
Feed Motor Power	1.5kW	1.5kW	1.5kW
Lifting Motor Power	0.25kW	0.25kW	0.25kW
Spindle Diameter	Φ112 mm	Φ112 mm	Φ112 mm
Overall Dimension (L×W×H)	1230×1040×1280 mm	1330×1040×1280 mm	1530×1040×1280 mm
Net Weight	900 kg	1000 kg	1100 kg
